1、High Strength ductile castings to ensure constant stabilization
and die-cut precision.

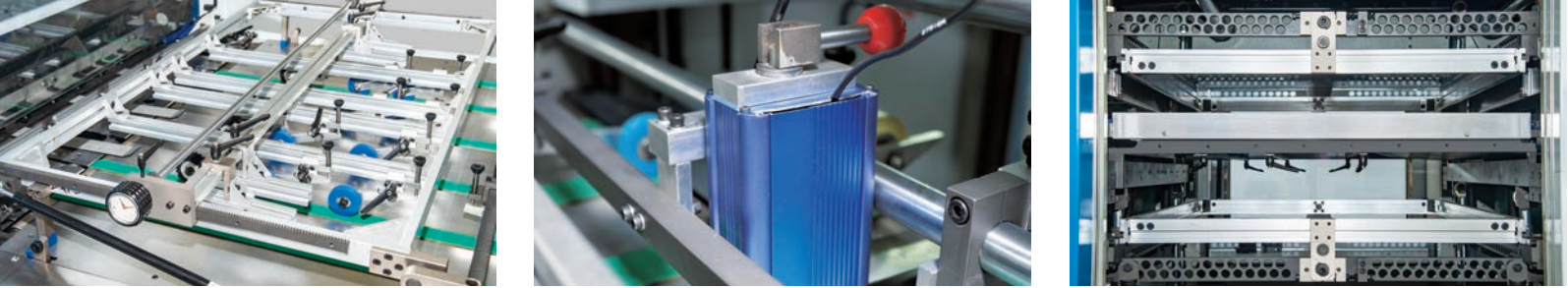

2、World-wide well-known brand electric component makes the running of the machine smooth and reliable.
3、Four Sucking and four forwarding precise feeder whichcan to cardboard and corrugated sheet - stable and high efficient. makes the running of the machine smooth and reliable.
4、Three-Frame co-movement stripping with central positioning device.
5、Flexible and reliable Chase turner and central positioning device on the chase.
6、Pile delivery or belt scale delivery makes the operation convenient and fast.
7、Fast and convenient pre-feeding device.
8、CE standard electric system to ensure smooth operation and safety of the operators.

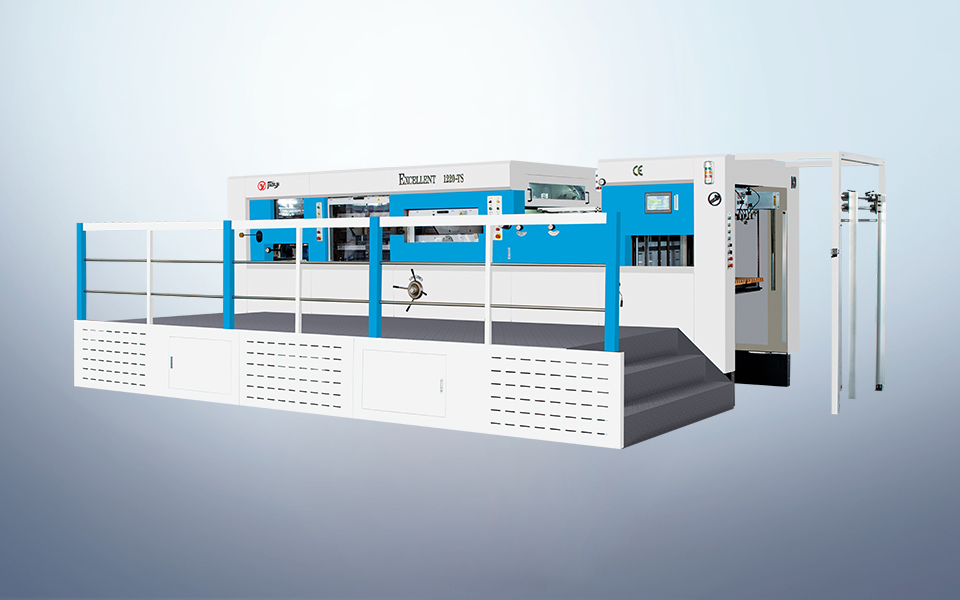

Excellent 1320TS Technical Parameters
| MODEL | Excellent 1320TS |
| Max. Paper Size | 1320X980mm |
| Min. Paper Size | 400X370mm |
| Max. Die-cutting Size | 1300X960mm |
| Gripper Edge Size | 7-17mm |
| Inner Chase Size | 1370X990mm |
| Applicable Paper Size | 80-2000g/m²（Cardboard） 0.1-2mm（Cardboard） ≤4mm（Corrugated Paper） |
| Die-cutting Precision | ≤±0.1mm |
| Max. Die-cutting Pressure | 400T |
| Speed | 6000S/H |
| Max.feeder Pile Height | 1700mm |
| Max.delivery Pile Height | 1350mm |
| Dimension | 8830mmx4960mmx2452mm(含脚踏板) |
| Weight | 21000kg |
| Main Motor Power | 15KW |
| Rated Power | 18KW |
| Full-load Power | 22KW |
| Air Source Requirezment | 0.55-0.7Mpa/≥0.37m³/min |
Excellent 1220TS Technical Parameters
| MODEL | Excellent 1220TS |
| Max. Paper Size | 1220X870mm |
| Min. Paper Size | 400X360mm |
| Max. Die-cutting Size | 1200X850mm |
| Gripper Edge Size | 7-17mm |
| Inner Chase Size | 1220X880mm |
| Applicable Paper Size | 80-2000g/m²（Cardboard） 0.1-2mm（Cardboard） ≤4mm（Corrugated Paper） |
| Die-cutting Precision | ≤±0.1mm |
| Max. Die-cutting Pressure | 350T |
| Speed | 7000S/H |
| Max.feeder Pile Height | 1650mm |
| Max.delivery Pile Height | 1350mm |
| Dimension | 8272mmx4582mmx2308mm(含脚踏板) |
| Weight | 18000kg |
| Rated Power | 13.5KW |
| Full-load Power | 17.6KW |
| Air Source Requirezment | 0.55-0.7Mpa/≥0.37m³/min |
Excellent 1060TS Technical Parameters
| ModEL | Excellent 1060TS |
| Max. Paper Size | 1060X760mm |
| Min. Paper Size | 400X360mm |
| Max. Die-cutting Size | 1050X750mm |
| Gripper Edge Size | 7-17mm |
| Inner Chase Size | 1100X790mm |
| Applicable Paper Size | 80-2000g/m²（Cardboard） 0.1-2mm（Cardboard） ≤4mm（Corrugated Paper） |
| Die-cutting Precision | ≤±0.1mm |
| Max. Die-cutting Pressure | 300T |
| Speed | 7500S/H |
| Max.feeder Pile Height | 1650mm |
| Max.delivery Pile Height | 1500mm |
| Dimension | 7848mmx3917mmx2269mm(含脚踏板) |
| Weight | 16500kg |
| Main Motor Power | 11KW |
| Rated Power | 13.5KW |
| Full-load Power | 17.6KW |
| Air Source Requirezment | 0.55-0.7Mpa/≥0.37m³/min |
