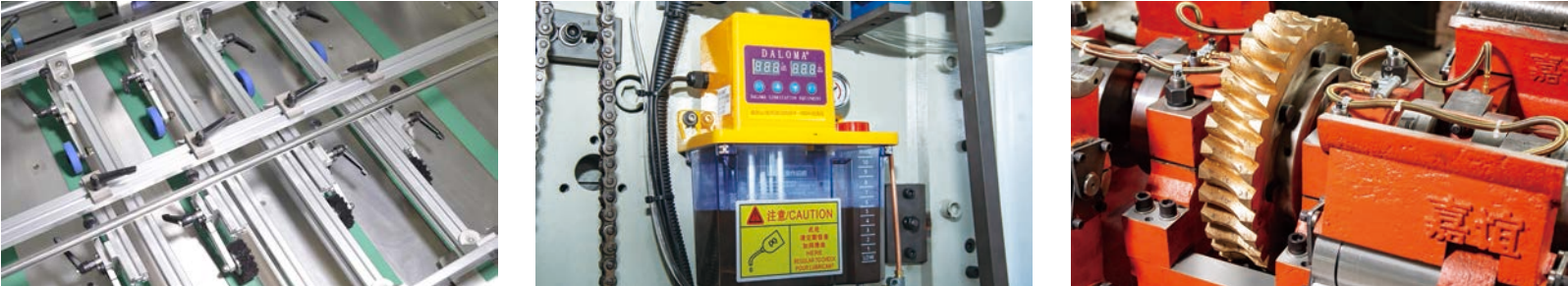

1、High Strength ductile castings to ensure constant stabilization
and die-cut precision.
2、Monitor in front to Show machine working speed, die-cut number and total running hours.
3、World-wide well-known brand electric component makes the running of the machine smooth and reliable.
4、Fast pneumatic clutch and chase locking.
5、Program control device and Man-machine interface.

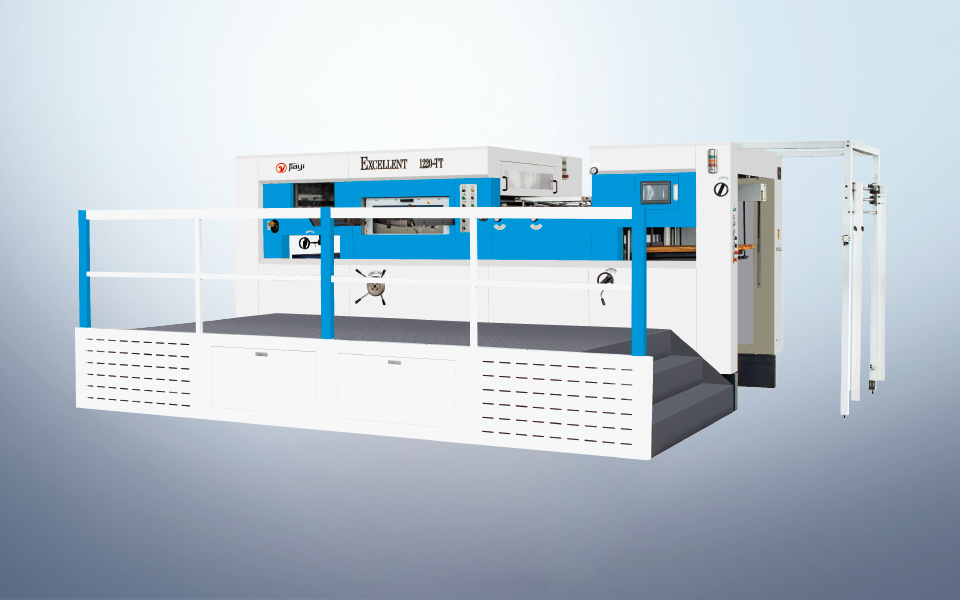

Excellent 1320TT Technical Parameters
| MODEL | Excellent 1320TT |
| Max. Paper Size | 1320X980mm |
| Min. Paper Size | 400X370mm |
| Max. Die-cutting Size | 1300X960mm |
| Gripper Edge Size | 7-17mm |
| Inner Chase Size | 1370X990mm |
| Applicable Paper Size | 80-2000g/m²（Cardboard） 0.1-2mm（Cardboard） ≤4mm（Corrugated Paper） |
| Die-cutting Precision | ≤±0.1mm |
| Max. Die-cutting Pressure | 800T |
| Speed | 6000S/H |
| Max.feeder Pile Height | 1700mm |
| Max.delivery Pile Height | 1350mm |
| Dimension | 7584mmx5092mmx2412mm(含脚踏板) |
| Weight | 30000kg |
| Main Motor Power | 22KW |
| Rated Power | 25.5KW |
| Full-load Power | 28.6KW |
| Air Source Requirezment | 0.55-0.7Mpa/≥0.37m³/min |
Excellent 1220TT Technical Parameters
| MODEL | Excellent 1220TT |
| Max. Paper Size | 1220X870mm |
| Min. Paper Size | 400X370mm |
| Max. Die-cutting Size | 1200X850mm |
| Gripper Edge Size | 7-17mm |
| Inner Chase Size | 1220X880mm |
| Applicable Paper Size | 80-2000g/m²（Cardboard） 0.1-2mm（Cardboard） ≤4mm（Corrugated Paper） |
| Die-cutting Precision | ≤±0.1mm |
| Max. Die-cutting Pressure | 680T |
| Speed | 7000S/H |
| Max.feeder Pile Height | 1650mm |
| Max.delivery Pile Height | 1350mm |
| Dimension | 7132mmx4692mmx2308mm(含脚踏板) |
| Weight | 21500kg |
| Main Motor Power | 22KW |
| Rated Power | 25.5KW |
| Full-load Power | 28.6KW |
| Air Source Requirezment | 0.55-0.7Mpa/≥0.37m³/min |
Excellent 1060TT Technical Parameters
| MODEL | Excellent 1060TT |
| Max. Paper Size | 1080X780mm |
| Min. Paper Size | 400X360mm |
| Max. Die-cutting Size | 1070X770mm |
| Gripper Edge Size | 7-17mm |
| Inner Chase Size | 1100X790mm |
| Applicable Paper Size | 80-2000g/m²（Cardboard） 0.1-2mm（Cardboard） ≤4mm（Corrugated Paper） |
| Die-cutting Precision | ≤±0.1mm |
| Max. Die-cutting Pressure | 600T |
| Speed | 7000S/H |
| Max.feeder Pile Height | 1650mm |
| Max.delivery Pile Height | 1500mm |
| Dimension | 6748mmx4064mmx2267mm(含脚踏板) |
| Weight | 19000kg |
| Main Motor Power | 22KW |
| Rated Power | 25.5KW |
| Full-load Power | 28.6KW |
| Air Source Requirezment | 0.55-0.7Mpa/≥0.37m³/min |
