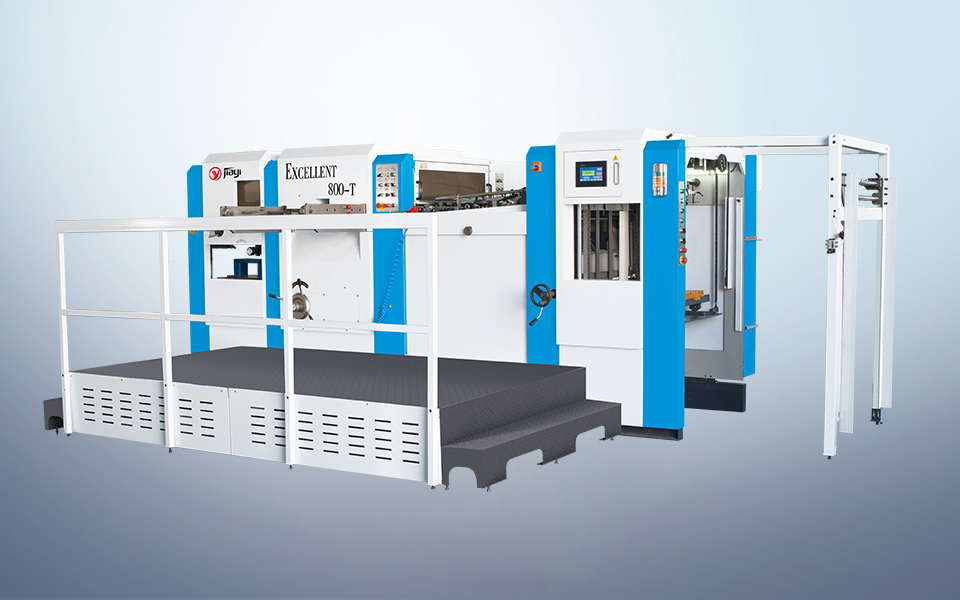

EXCELLENT 800T
AUTOMATIC DIE-CUTTING AND CREASING MACHINE

1、High  Strength ductile castings to ensure constant stabilization and die-cut precision.
2、Monitor in front to Show machine working speed, die-cut number and total running hours.
3、World-wide well-known brand electric component makes the running of the machine smooth and reliable.
4、Fast pneumatic clutch and chase locking.
5、Program control device and Man-machine interface.

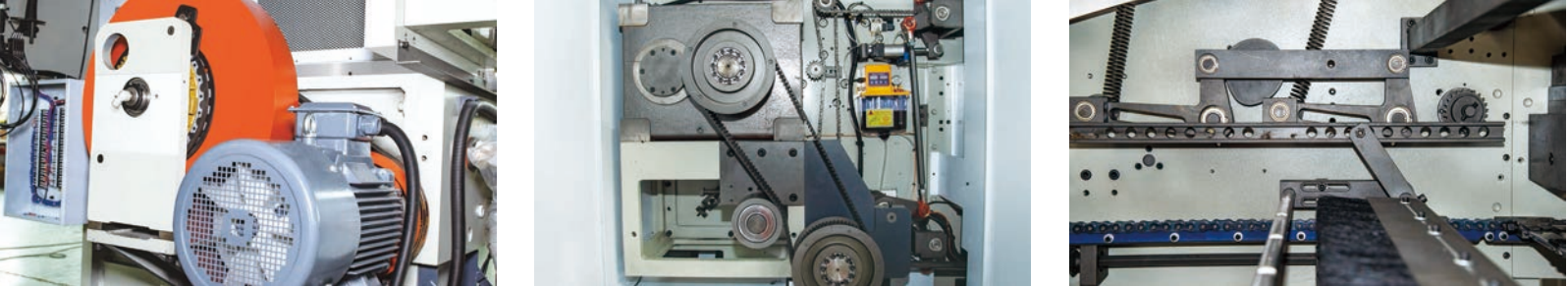

Local Description 01

12

Technical Parameters 02
MODELExcellent  800T
Max. Paper Size810X620mm
Min. Paper Size380X250mm
Max. Die-cutting Size800X610mm
Gripper Edge Size7-17mm
Inner Chase Size810X628mm
Applicable Paper Size80-2000g/m² (Cardboard)
0.1-2mm (Cardboard)
≤4mm(Corrugated Paper)
Die-cutting Precision≤±0.1mm
Max. Die-cutting Pressure280T
Speed8500S/H
Max.feeder Pile Height1350mm
Max.delivery Pile Height1200mm
Dimension5809mmx3572mmx1926mm
Weight10000kg
 Main Motor Power7.5KW
Rated Power10KW
Full-load Power14KW
Air Source Requirezment0.55-0.7Mpa/≥0.37m³/min
