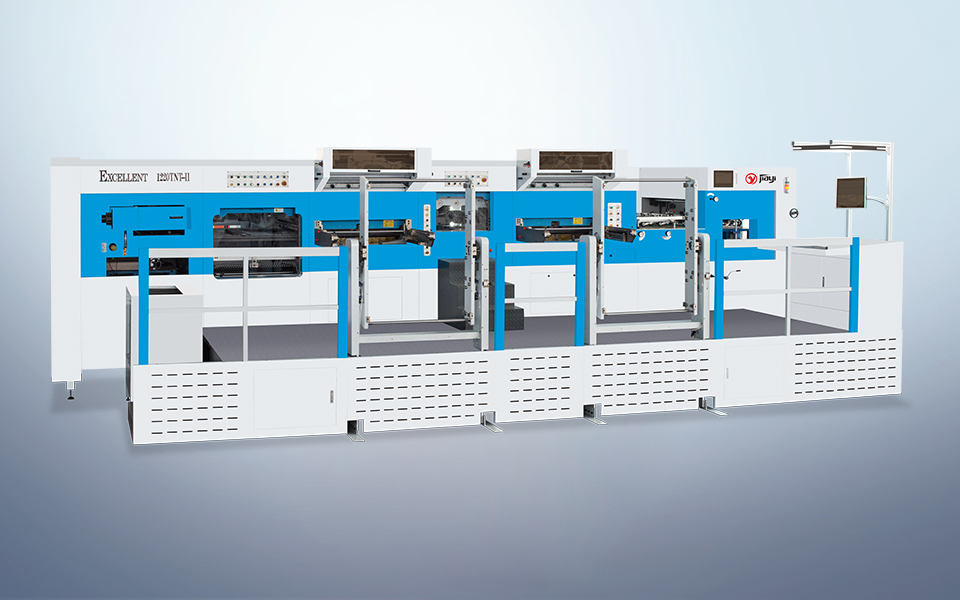

EXCELLENT 1220TNT-Ⅱ
AUTOMATIC DIE-CUTTING AND EMBOSSING MACHINE WITH STRIPPING

1、The machine adopts PLC computer control system. The computer display and man-machine interface touch screen can detect and display the running state of machine in time, convenient for troubleshooting adjustment.problem of large format.
2、Machine equipped with five foil driving rollers in both longitudinal and lateral directions, making stamping process more reasonable. The three longitudinal and two lateral stepping rollers are controlled by five servo motors, they can independently or simultaneously achieve leapfrogging and stepping functions. The machine caters to various kinds of stamping plates saving foil material as well as enhancing stamping effect and quality.
3、The large tank of a air blowing system has separation function, which effectively ensures the stamping quality of thin paper, while solving the stamping separation problem of large format.
4、Heating plate adopts heat-resistant cast iron material, no deformation. It divides into 16 areas with separate temperature control. This design is convenient forstamping plate installation and suit for different stamping control. The pneumatic lock plate device makes repeat positioning precisely and easy to operate.

Local Description 01
Technical Parameters 02
MODELEXCELLENT 1220TNT-Ⅱ
Max. Paper Size1220X890mm
Min. Paper Size400X360mm
Max. Die-cutting Size1200X870mm
Gripper Edge Size7-17mm
Inner Chase Size1220X900mm
Applicable Paper Size80-2000g/m²(Cardboard)
0.1-2mm(Cardboard)
≤4mm(Corrugated Paper)
Die-cutting Precision≤±0.075mm
Max. Die-cutting Pressure700T
Speed7000S/H
Max.feeder Pile Height1700mm(With wooden pallet)
Max.delivery Pile Height1350mm(With wooden pallet)
Dimension8833mmx4732mmx2645mm
Weight45000kg
 Main Motor Power30KW
Rated Power60KW
Full-load Power130KW
Air Source Requirezmentpressure 0.55~0.7Mpa / Flow ≥0.37 m3/min
